Xcode中使用git
2014-02-17
在之前写的一篇博客git命令详解里面尽量详细系统地介绍了一些git命令。这里主要针iOS团队开发使用Xcode和git时的一些场景做一些小结。
关于.gitignore
首先说说.gitignore
。在 Mac OS X 上用 Xcode 做iOS开发,有一些文件通常是不应该提交到版本管理库里面去的,那就需要在项目的根目录下添加 .gitignore
文件,并编辑其内容,将这些文件按一定的规则添加进来。
下面的 .gitignore
文件是参考Stack Overflow上关于 gitignore for Xcode Project 的讨论而来,基本上总结了目前我们需要在 .gitignore
中设置的内容,并做了详细的说明:
#########################
# .gitignore file for Xcode4 / OS X Source projects
#
# Version 2.1
# For latest version, see: http://stackoverflow.com/questions/49478/git-ignore-file-for-xcode-projects
#
# 2013 updates:
# - fixed the broken "save personal Schemes"
# - added line-by-line explanations for EVERYTHING (some were missing)
#
# NB: if you are storing "built" products, this WILL NOT WORK,
# and you should use a different .gitignore (or none at all)
# This file is for SOURCE projects, where there are many extra
# files that we want to exclude
#
#########################
#####
# OS X temporary files that should never be committed
#
# c.f. http://www.westwind.com/reference/os-x/invisibles.html
.DS_Store
# c.f. http://www.westwind.com/reference/os-x/invisibles.html
.Trashes
# c.f. http://www.westwind.com/reference/os-x/invisibles.html
*.swp
# *.lock - this is used and abused by many editors for many different things.
# For the main ones I use (e.g. Eclipse), it should be excluded
# from source-control, but YMMV
*.lock
#
# profile - REMOVED temporarily (on double-checking, this seems incorrect; I can't find it in OS X docs?)
#profile
####
# Xcode temporary files that should never be committed
#
# NB: NIB/XIB files still exist even on Storyboard projects, so we want this...
*~.nib
####
# Xcode build files -
#
# NB: slash on the end, so we only remove the FOLDER, not any files that were badly named "DerivedData"
DerivedData/
# NB: slash on the end, so we only remove the FOLDER, not any files that were badly named "build"
build/
#####
# Xcode private settings (window sizes, bookmarks, breakpoints, custom executables, smart groups)
#
# This is complicated:
#
# SOMETIMES you need to put this file in version control.
# Apple designed it poorly - if you use "custom executables", they are
# saved in this file.
# 99% of projects do NOT use those, so they do NOT want to version control this file.
# ..but if you're in the 1%, comment out the line "*.pbxuser"
# .pbxuser: http://lists.apple.com/archives/xcode-users/2004/Jan/msg00193.html
*.pbxuser
# .mode1v3: http://lists.apple.com/archives/xcode-users/2007/Oct/msg00465.html
*.mode1v3
# .mode2v3: http://lists.apple.com/archives/xcode-users/2007/Oct/msg00465.html
*.mode2v3
# .perspectivev3: http://stackoverflow.com/questions/5223297/xcode-projects-what-is-a-perspectivev3-file
*.perspectivev3
# NB: also, whitelist the default ones, some projects need to use these
!default.pbxuser
!default.mode1v3
!default.mode2v3
!default.perspectivev3
####
# Xcode 4 - semi-personal settings
#
#
# OPTION 1: ---------------------------------
# throw away ALL personal settings (including custom schemes!
# - unless they are "shared")
#
# NB: this is exclusive with OPTION 2 below
xcuserdata
# OPTION 2: ---------------------------------
# get rid of ALL personal settings, but KEEP SOME OF THEM
# - NB: you must manually uncomment the bits you want to keep
#
# NB: this *requires* git v1.8.2 or above; you may need to upgrade to latest OS X,
# or manually install git over the top of the OS X version
# NB: this is exclusive with OPTION 1 above
#
#xcuserdata/**/*
# (requires option 2 above): Personal Schemes
#
#!xcuserdata/**/xcschemes/*
####
# XCode 4 workspaces - more detailed
#
# Workspaces are important! They are a core feature of Xcode - don't exclude them :)
#
# Workspace layout is quite spammy. For reference:
#
# /(root)/
# /(project-name).xcodeproj/
# project.pbxproj
# /project.xcworkspace/
# contents.xcworkspacedata
# /xcuserdata/
# /(your name)/xcuserdatad/
# UserInterfaceState.xcuserstate
# /xcsshareddata/
# /xcschemes/
# (shared scheme name).xcscheme
# /xcuserdata/
# /(your name)/xcuserdatad/
# (private scheme).xcscheme
# xcschememanagement.plist
#
#
####
# Xcode 4 - Deprecated classes
#
# Allegedly, if you manually "deprecate" your classes, they get moved here.
#
# We're using source-control, so this is a "feature" that we do not want!
*.moved-aside
####
# UNKNOWN: recommended by others, but I can't discover what these files are
#
# ...none. Everything is now explained.
关于 .gitignore
我们还可以参考 github官方的Objective-C.gitignore。
如何在Xcode中使用git
在 Xcode 5
中,苹果的 Source Control 能很好的支持 git。具体如何使用,可以参考:How To Use Git Source Control with Xcode in iOS 7。
一些场景
这里主要总结一些自己的使用场景,由于还算不上深度用户,欢迎大家批评指谬误之处。
开发某个项目的多个版本
开发某个项目的多个版本时,可以为不同的版本建立不同的分支来管理。
合并不同分支
现在我们有两个分支:b1 和 b2,我们当前在 b1 上。
$ git branch
master
* b1
b2
-
1)我们想把 b2 合并到 b1 里来,也就是 Xcode 里的 merge from,也就相当于在命令行直接合并b2: git merge b2。
$ git merge b2
-
2)我们想把 b1 合并到 b2 里去,也就是 Xcode 里的 merge into,也就相当于在命令行先切换到 b2: git checkout b2(要记得所有更改都先 commit 了);然后合并b1: git merge b1。
$ git checkout b2 $ git merge b1

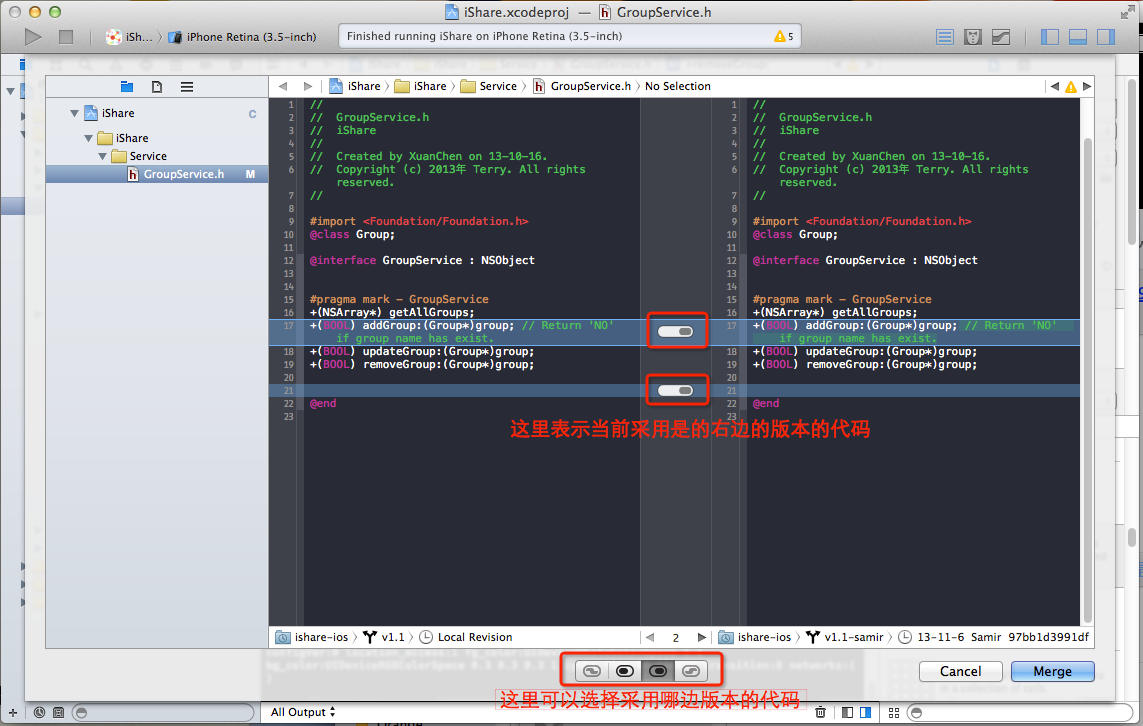

如果出现冲突,我们可以到 Xcode 中去 merge 了。
遇到不能checkout的错误
想切换一下分支的时候遇到下面的错误:
error: The following untracked working tree files would be overwritten by checkout:
ProjectFolder.xcodeproj/project.xcworkspace/xcuserdata/myUserName.xcuserdatad/UserInterfaceState.xcuserstate
Please move or remove them before you can switch branches.
Aborting
遇到上面的错误,是因为项目中不应该被track的文件也被git给track了。
可以这样解决:
1)把上述文件加到 .gitignore
,最好参考上文的 .gitignore
文件内容;
2)通过下面命令让git停止track相应的文件:
git rm --cached ProjectFolder.xcodeproj/project.xcworkspace/xcuserdata/myUserName.xcuserdatad/UserInterfaceState.xcuserstate
git commit -m "Removed file that shouldn't be tracked"
这之后git就会遵照 .gitignore
来忽略相应的文件了。
